Model's Description:
PV mounting system: model R2V2 3D Model, Fully textured with UV Mapping and materials.
Download
PV mounting system: model R2V2 in various files formats such as Wavefront Object format, Autodesk FBX, DirectX 9.0, Stereo Lithography and HTML5 JSON format.

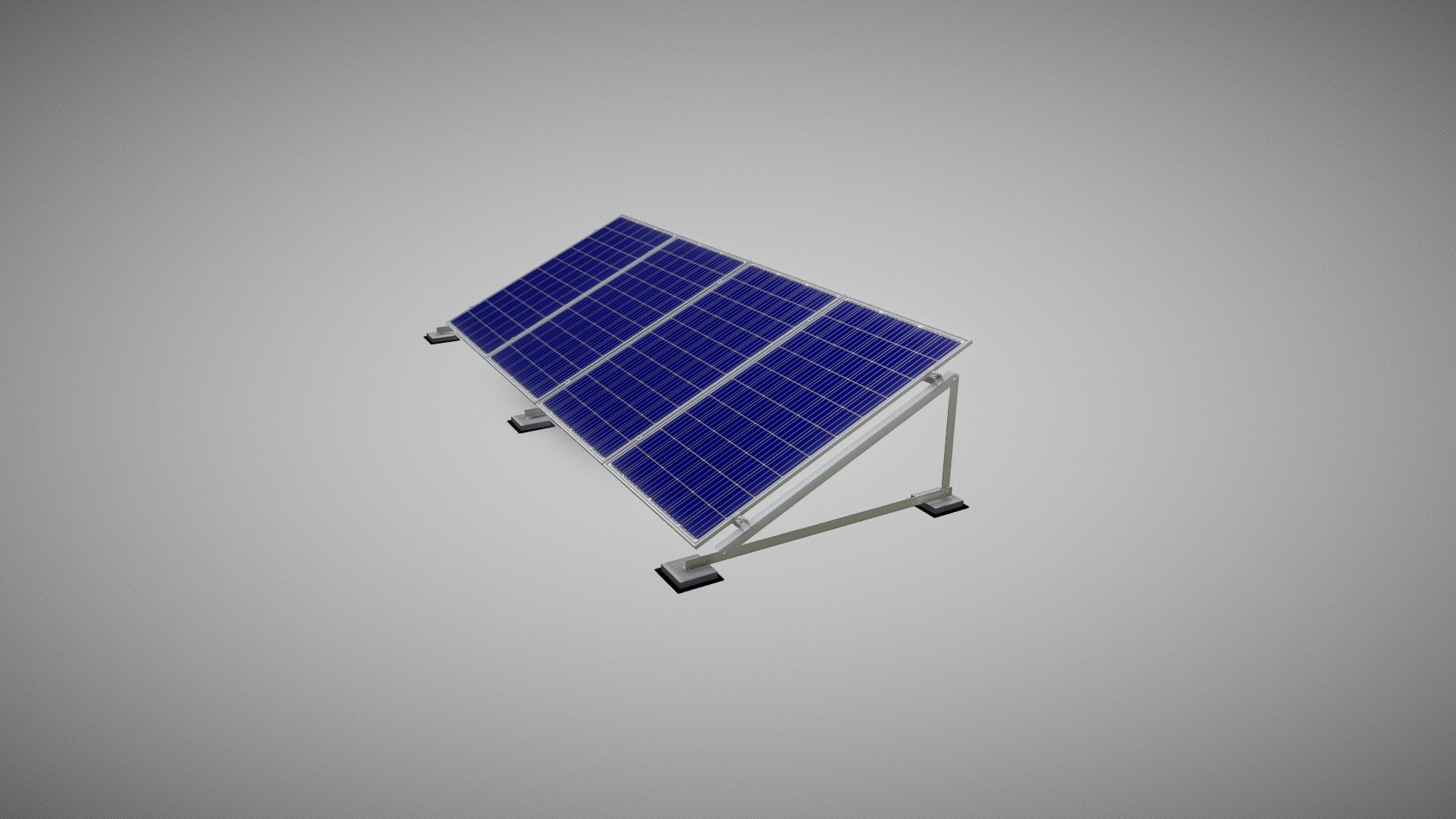

**KRAFT Solergy Company - frame structures for PV solar power plants manufacturer. ** The Model R2V2 PV solar power plant frame is a basic version of the frame for mounting solar cells on the roof with a vertical arrangement of photovoltaic elements. The basic parameters are calculated at the design stage according to the specific requirements of the customer. Size range of PV solar panels: 1650-2400 mm in height, 990-1149 mm in width. The Model R2V2 PV solar power plant frame is made of high-quality galvanized steel. The main element of the design is a triangular frame. The structure is installed on the roof using a ballast attachment. Row material - Ry - 230 MPa, 350 MPa, 450 MPa steel with yield strenght (Ry not less than 230 mPa, 350 mPa, 450 mPa) according to EN 10025-2 and EN 10346 galvanized. Anti-corrosion protection of the frame elements is provided by the factory galvanic coating of the construction material, a zinc layer of at least 275-600 g/m2 3D Model is ready to download for free
with 1 Texture files attached, this model contains 45192 polygons and 22796 vertices.
Model's rating is (3) based on 29 Votes.
